| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

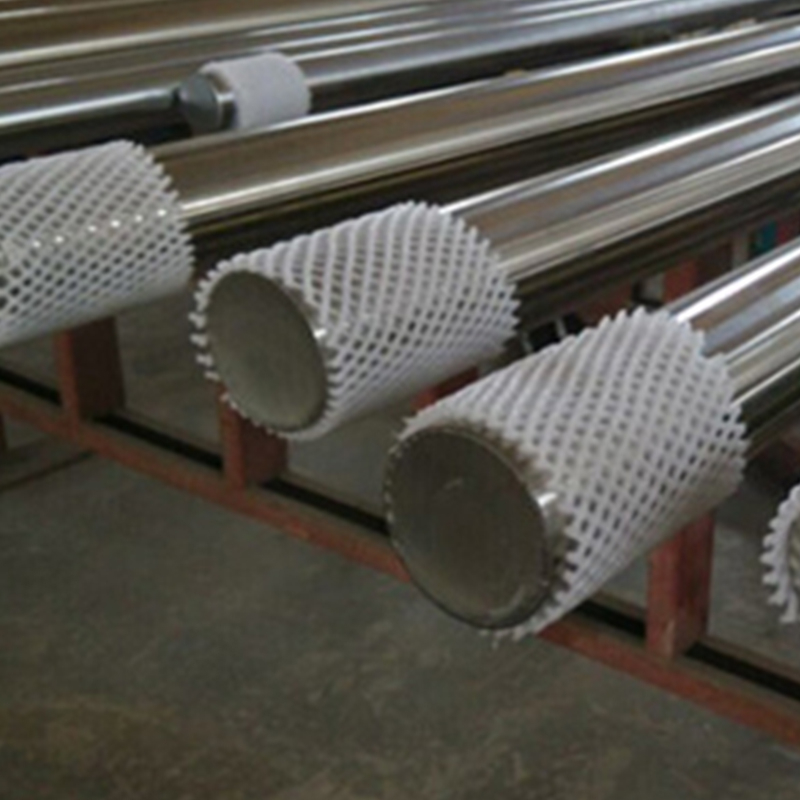

Engineered for automotive use, this chrome rod is ideal for shock absorbers, steering systems, and other linear actuators.
Built from black steel, it is precision ground, chrome plated, and polished to a Ra0.20μm finish. Its f7 tolerance allows for easy integration into tight-clearance cylinder designs.
The hard chrome layer enhances resistance to pitting, corrosion, and surface fatigue, even in tough road conditions. Designed to meet OEM performance standards, this rod offers quiet, reliable, and long-lasting service.
It is an ideal solution for automotive manufacturers and aftermarket cylinder rebuilders requiring consistency and durability in motion components.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
