| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

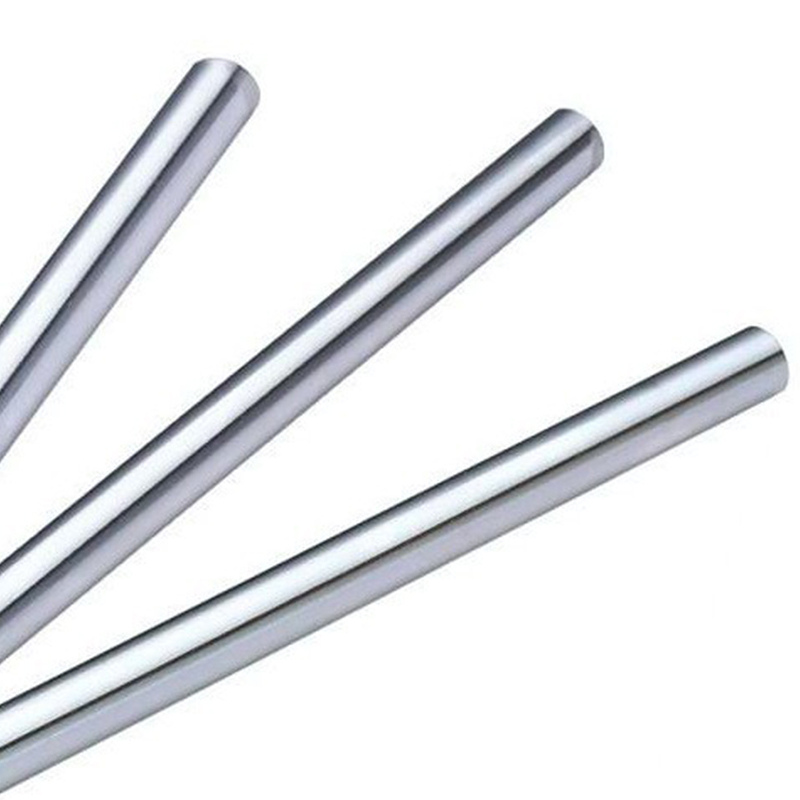

We offer export-grade hard chrome plated piston rods with consistent quality and strict inspection.
With international certifications and customizable sizes, these rods are suitable for global hydraulic equipment manufacturers.
They feature high straightness, corrosion resistance, and a smooth surface ideal for cylinder assembly.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
