| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

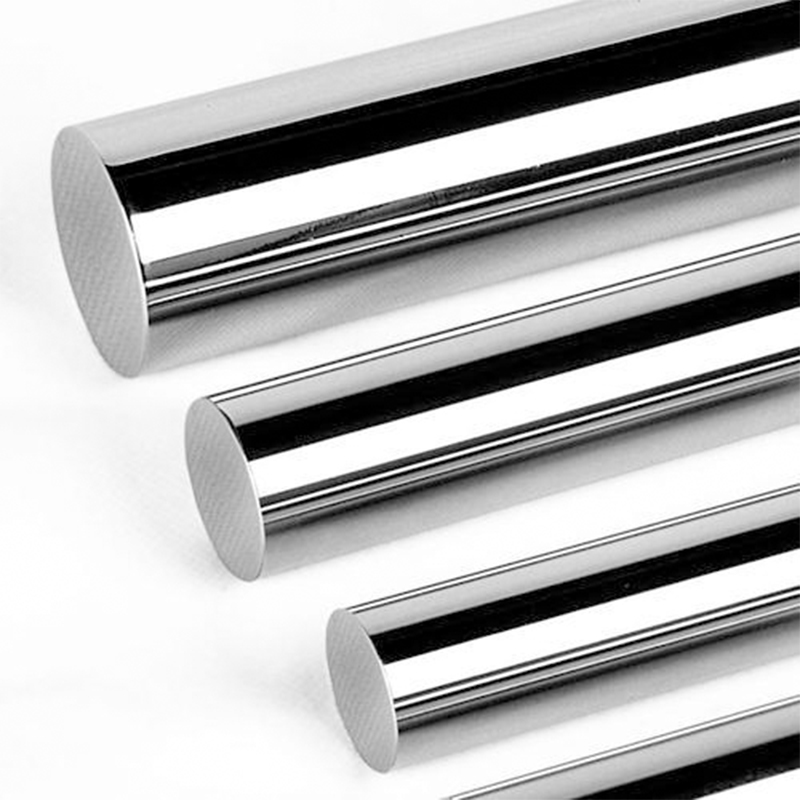

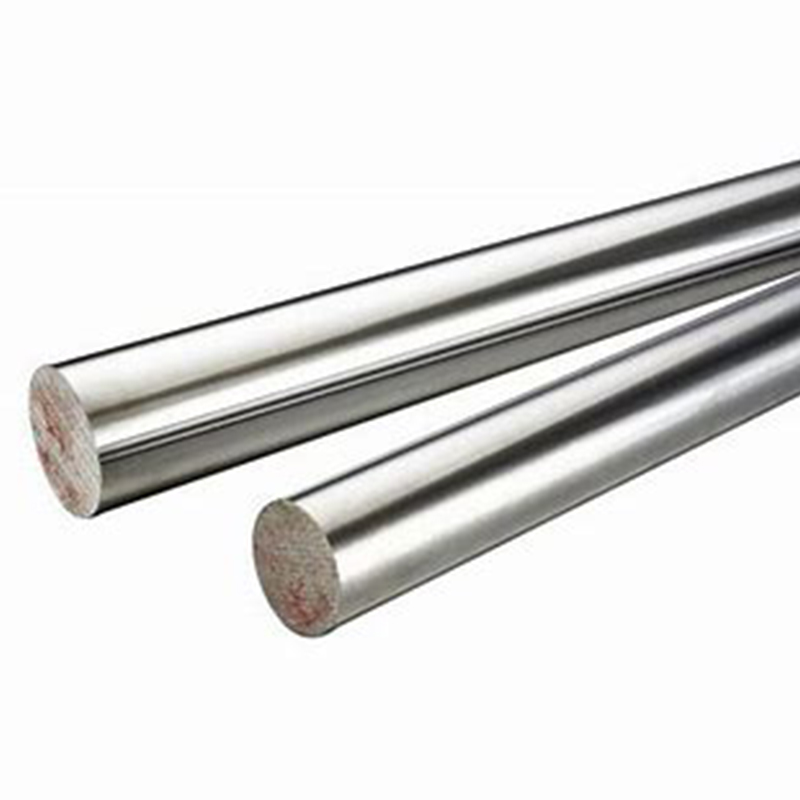

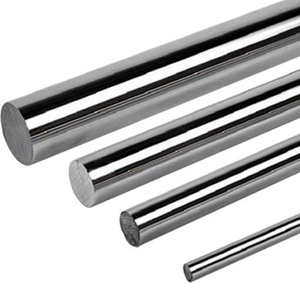

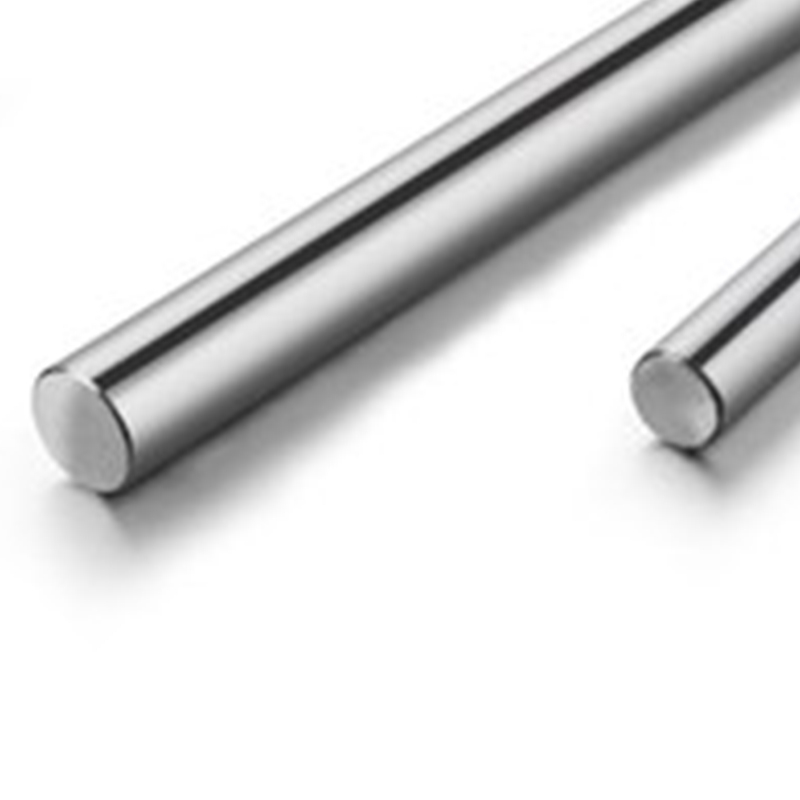

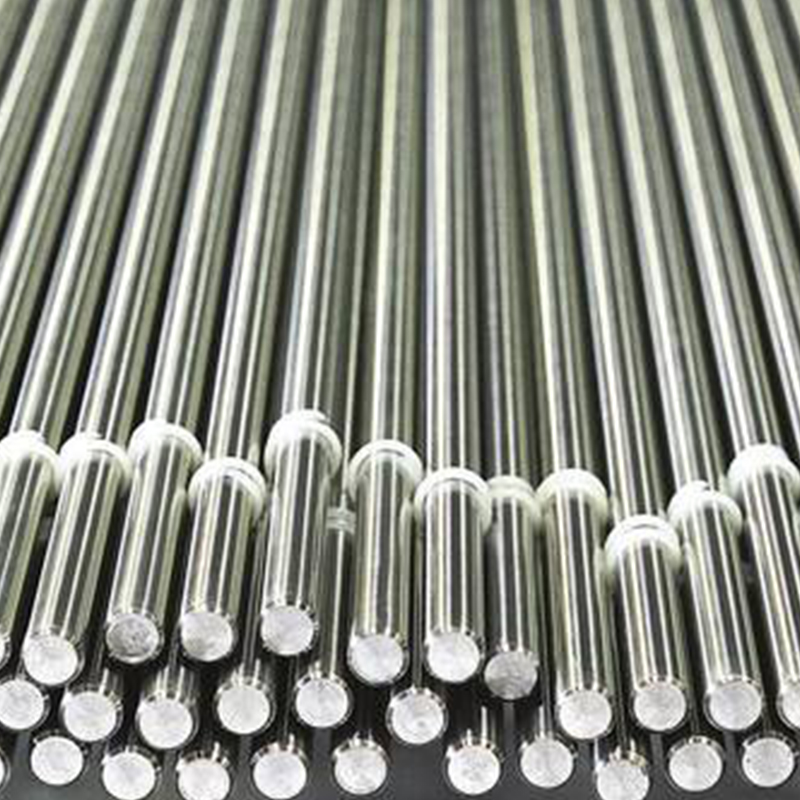

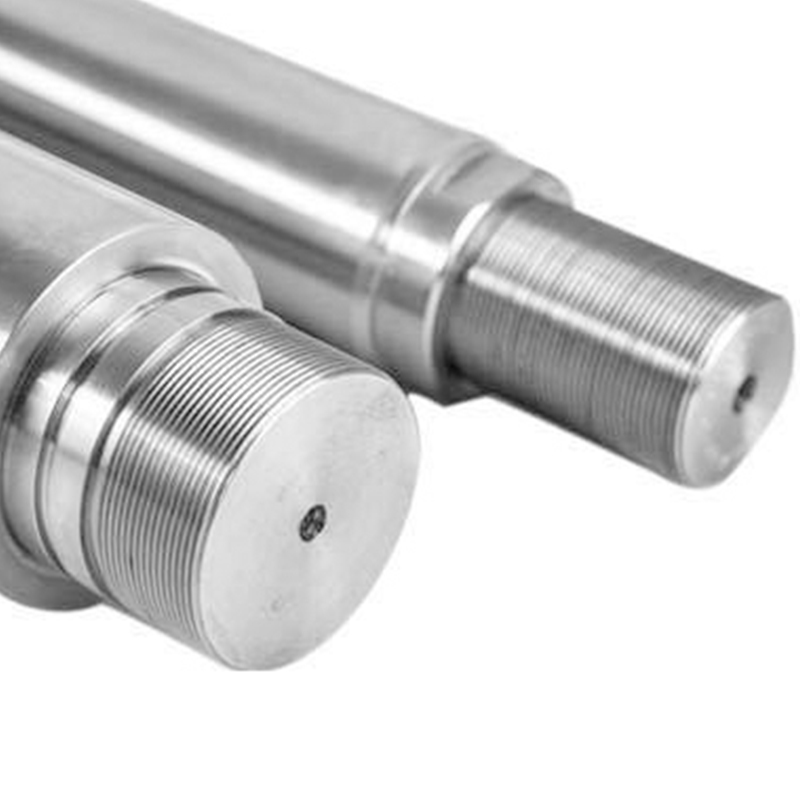

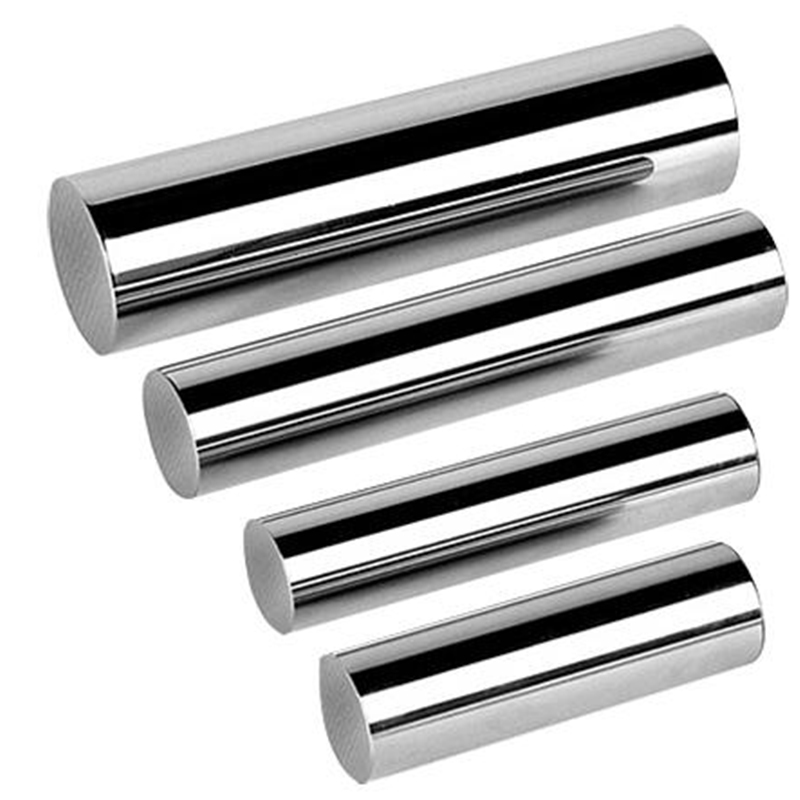

This high precision hard chrome plated piston rod is specially engineered for hydraulic press machines that demand exceptional performance, strength, and precision.
The product is manufactured using top-grade black round steel bar and goes through a rigorous process of peeling, centerless grinding, chrome plating, and mirror polishing.
The result is a piston rod with a surface roughness of Ra0.20μm, straightness of 0.2/1000mm, and an f7 tolerance, which meets international quality standards. These rods offer enhanced wear resistance, excellent corrosion protection, and high load capacity.
Ideal for automotive, metalworking, and industrial machinery applications, the chrome plated layer ensures longevity even in high-pressure and high-cycle environments. With superior packing protection and professional after-sales service, this hard chrome plated piston rod is a reliable solution for OEMs and aftermarket replacements.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
