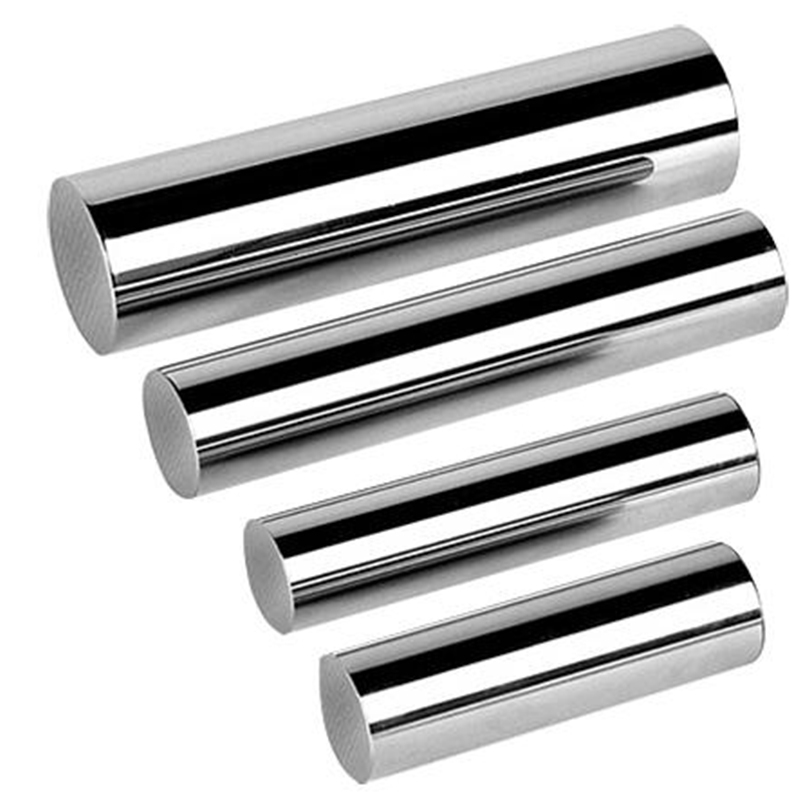

Industrial Chrome Rod with Mirror Finish for Pneumatic Systems

Hard chrome plated piston rod was made by black round steel bar, through peeling, centerless grinding, polishing, chrome plate, polishing process.
Products meet international standard demands.

Size:	Φ 6-500mm
Tolerance:	ISO f7
Length:	4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose
Roughness:	max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Straightness:	<= 0.2/1000
Roundness:	Half of the tolerance ISO f7
Chrome Thickness:	20-80µm
Availability:

Quantity:



Inquire Add to Basket

industrial chrome piston rod hard chrome plated rod for cylinders hard chrome hydraulic rod custom piston rods supplier hydraulic piston rod manufacturer chrome plated cylinder bar ST52 chrome plated piston rod 42CrMo piston rod supplier OEM chrome piston rod chrome rod for hydraulic cylinder

Product Description

This industrial chrome rod features a mirror-like hard chrome finish, offering low surface roughness and superior straightness, making it ideal for pneumatic systems and automation lines.

Built from black round steel, the rod is processed using peeling, precision grinding, and advanced chrome plating technology to achieve Ra0.20μm surface finish and f7 dimensional tolerance.

Its hard chrome coating significantly improves resistance to corrosion and abrasion, extending the service life of equipment such as cylinders, actuators, and tooling systems.

The uniformity and stability of quality make this chrome rod a premium choice for both standard and custom mechanical systems. Designed to meet international standards, it's perfect for industrial automation, electronics manufacturing, and motion control applications that require smooth linear movement and minimal friction.

Features:

1. High precision.

2. Made by best raw material.

3. Quality stable and uniformity.

4. Better packing protection.

5. Perfect after-sales service

Hard Chrome Plated Piston Rod:

Steel Grade	CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc.
Diameter	Φ 6-500mm
Tolerance	ISO f7
Length	4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose
Roughness	max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Straightness	<= 0.2/1000
Roundness	Half of the tolerance ISO f7
Hardness based on Delivery condition	Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2)
Chrome Thickness	20-80µm
Chrome Hardness	min. 900 HV (0.1)
Declaration of conformity	According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H).
Packing	Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged.
