| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

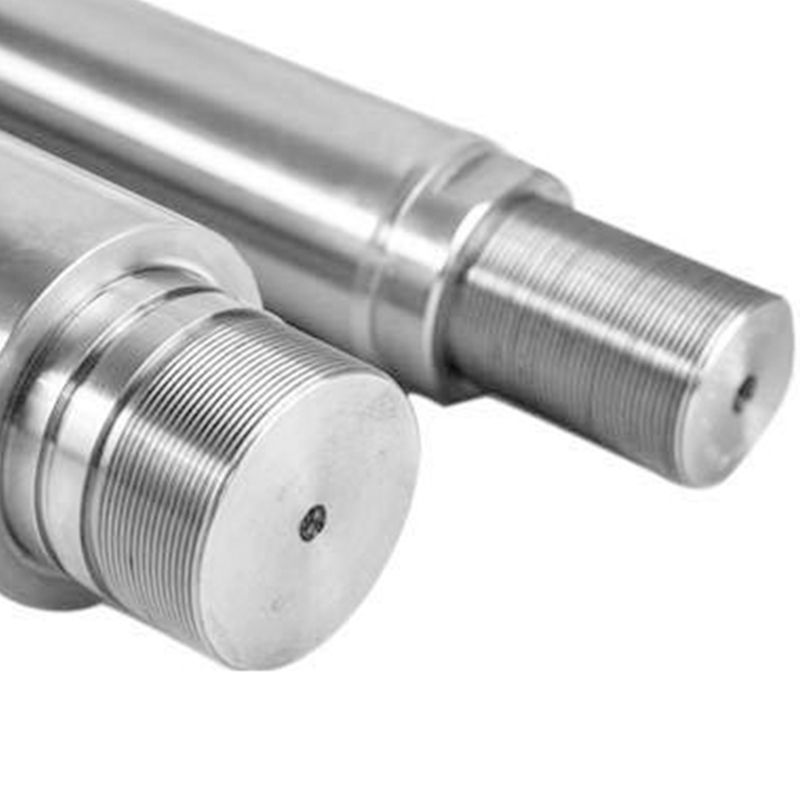

Designed for lifting equipment and heavy-duty hydraulic systems, this hard chrome plated piston rod offers excellent wear resistance and surface hardness.
Manufactured with high-quality black steel, the rod undergoes multiple stages of machining, including centerless grinding and polishing, before being plated with a thick layer of hard chrome.
The result is a piston rod with a mirror-smooth surface (Ra0.20μm) and precise f7 tolerance. The product resists corrosion and deformation under constant heavy loads and is ideal for forklifts, cranes, scissor lifts, and aerial platforms.
It conforms to international quality standards, ensuring long operational life, smooth performance, and fewer replacements. Reliable after-sales support and professional packaging further enhance its market appeal.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
