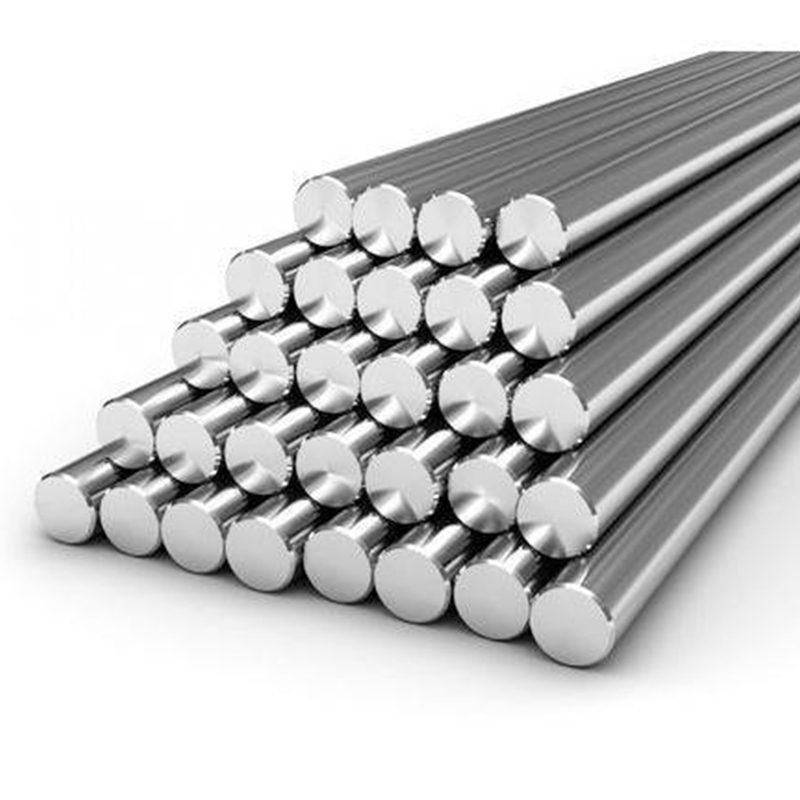

This chrome rod is mirror polished and designed to provide smooth and stable performance in both hydraulic and pneumatic systems.
Manufactured from black round steel bars, the rod goes through advanced processing steps such as peeling, grinding, and chrome plating. The result is a high-gloss finish with Ra0.20μm and f7 tolerance, which ensures smooth motion and reduced cylinder wear.
With its hard chrome layer, this chrome rod resists rust, mechanical stress, and surface wear, extending the lifespan of actuators and cylinders. It is suitable for use in industrial robotics, packaging machines, and automated production lines.
Available in standard and custom sizes, it meets international demands and is backed by reliable quality assurance.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
