| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

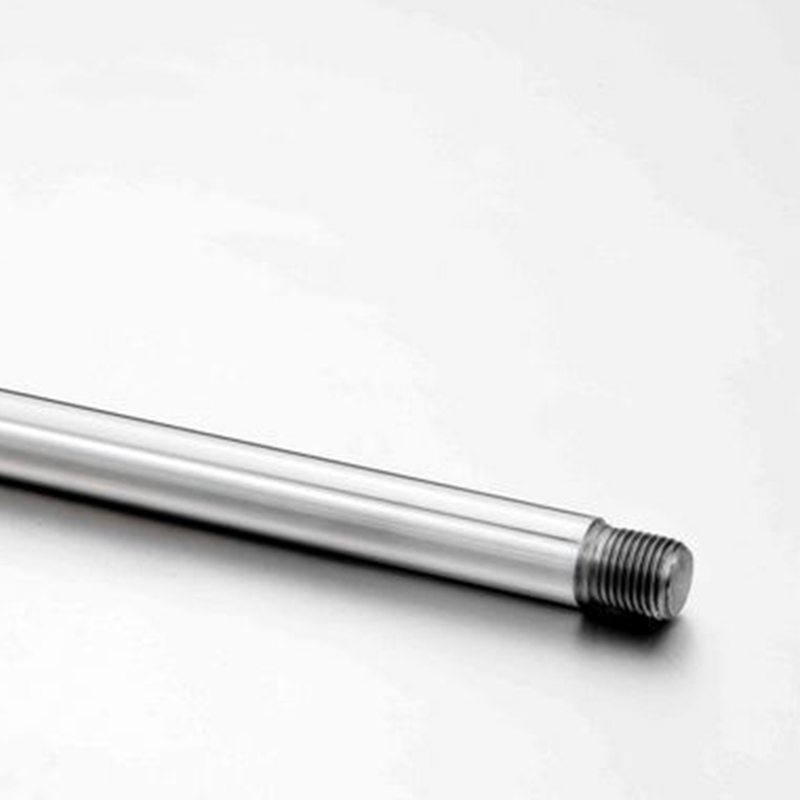

Our OEM hard chrome plated piston rod is built for maximum durability and accuracy. It starts with a high-quality steel base, then undergoes machining, polishing, and chrome plating to achieve a flawless surface and excellent straightness. This product meets f7 tolerance and boasts a surface roughness of Ra0.20μm. With strong corrosion resistance and dimensional stability, it is suitable for various hydraulic applications, including manufacturing, automotive repair, and construction. Each piston rod is packaged securely to avoid damage during transit and comes with full technical support. Our facility supports OEM and ODM services to tailor each rod to customer specifications, making it the preferred choice for global machinery manufacturers.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
