| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

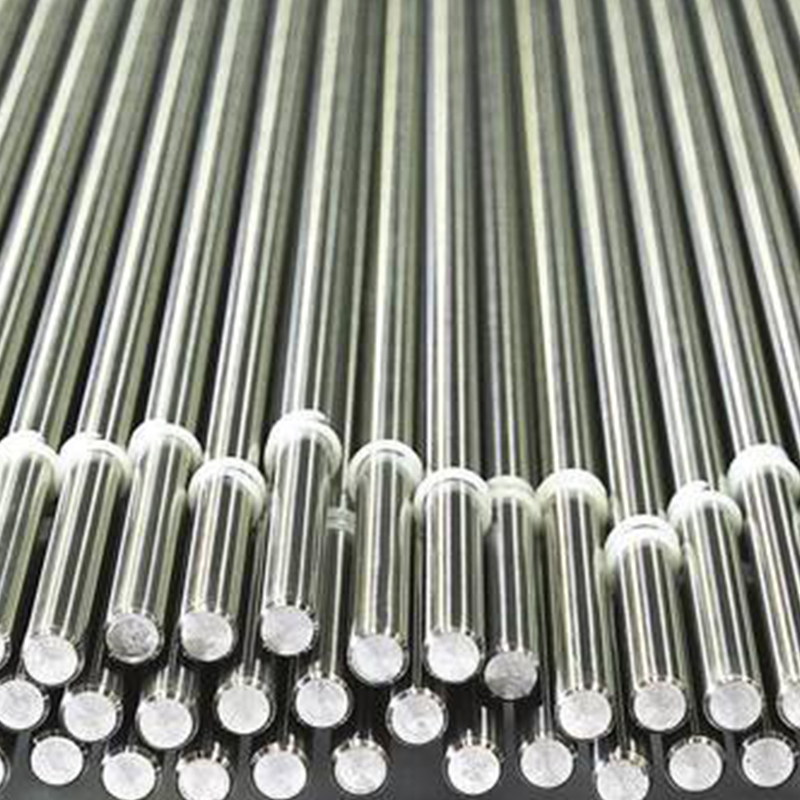

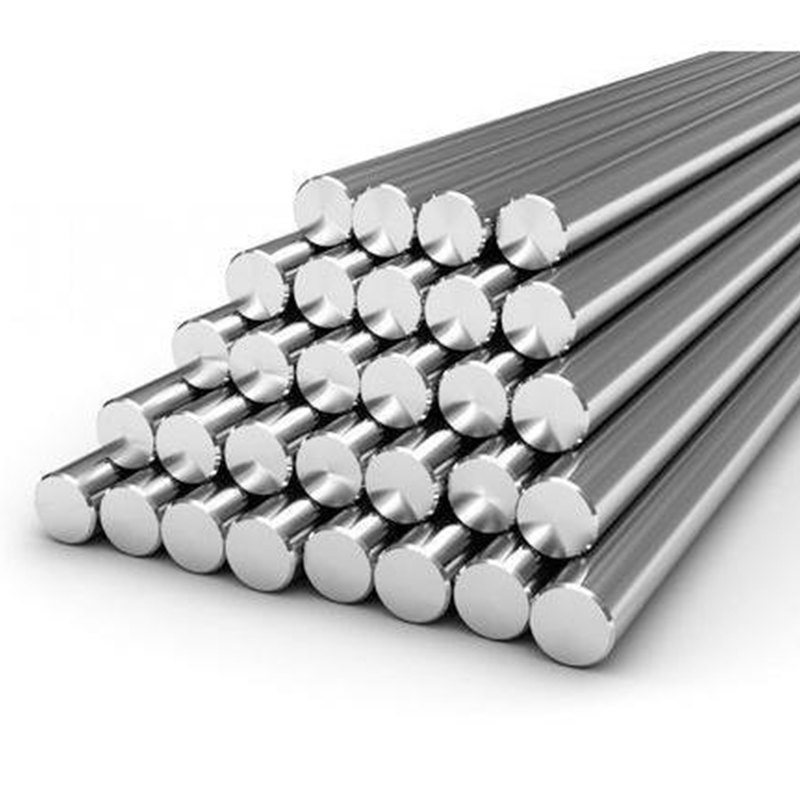

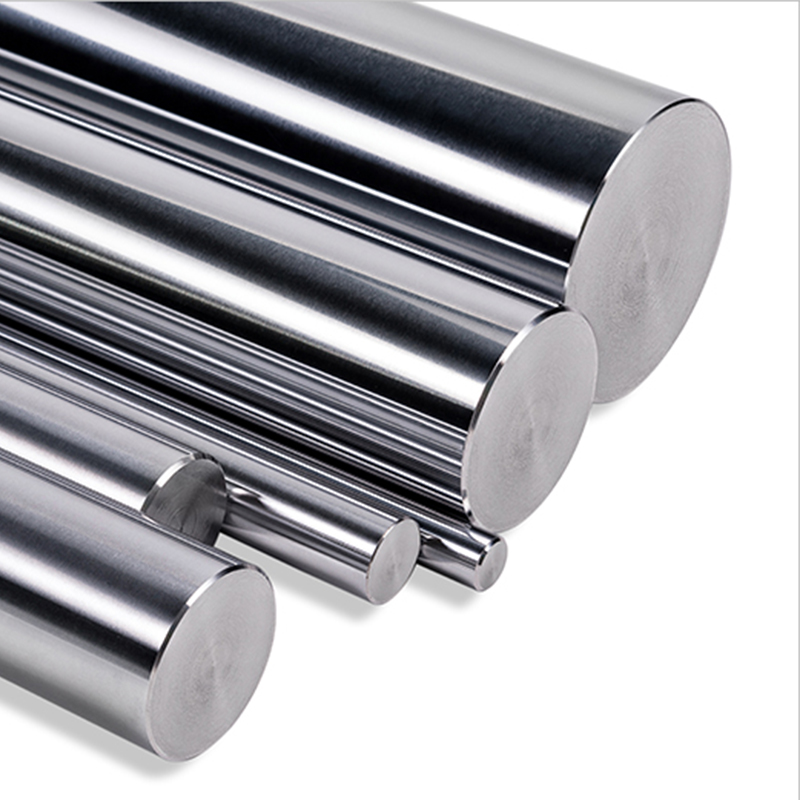

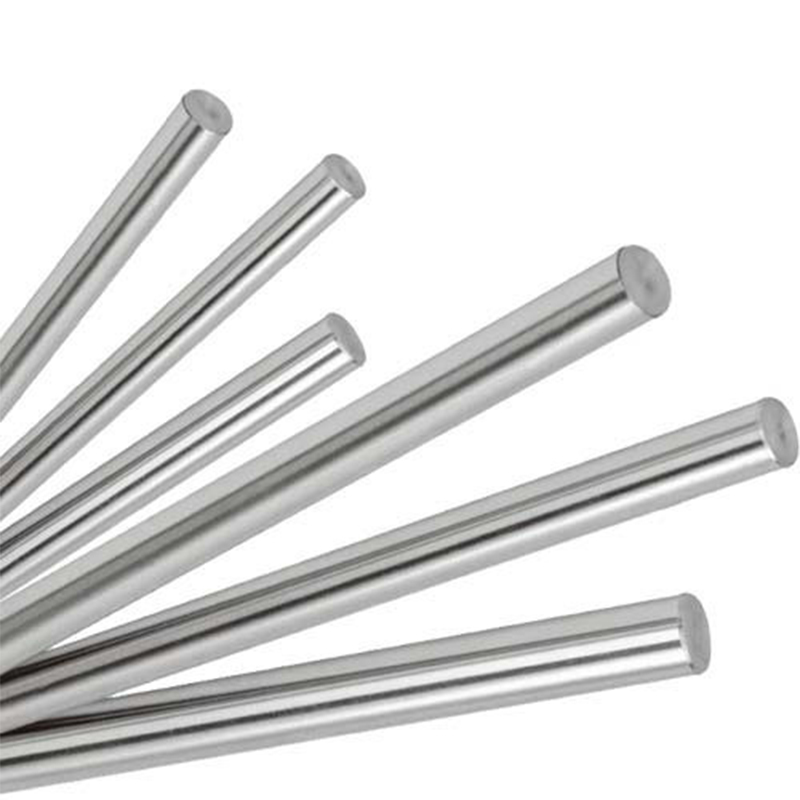

This OEM-grade piston rod is tailored for hydraulic cylinder production, featuring a hard chrome coating that ensures excellent surface integrity and mechanical strength.

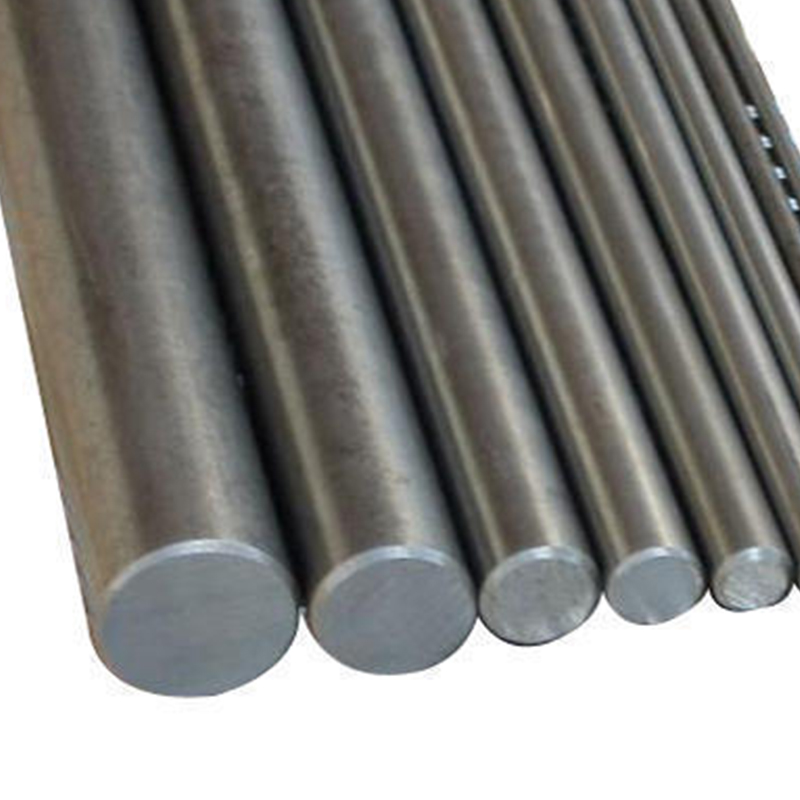

The rod is produced from black round steel, machined to achieve high precision and then polished to a Ra0.20μm surface roughness. It adheres to f7 tolerance and 0.2/1000mm straightness for perfect cylinder fit.
Widely used by OEM manufacturers of construction equipment, agricultural machinery, and industrial automation systems, the hard chrome plated surface enhances sealing performance and minimizes friction.
Its consistent quality, competitive pricing, and customizable dimensions make it an ideal solution for mass production and global export. This piston rod represents reliability, endurance, and engineering excellence.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |

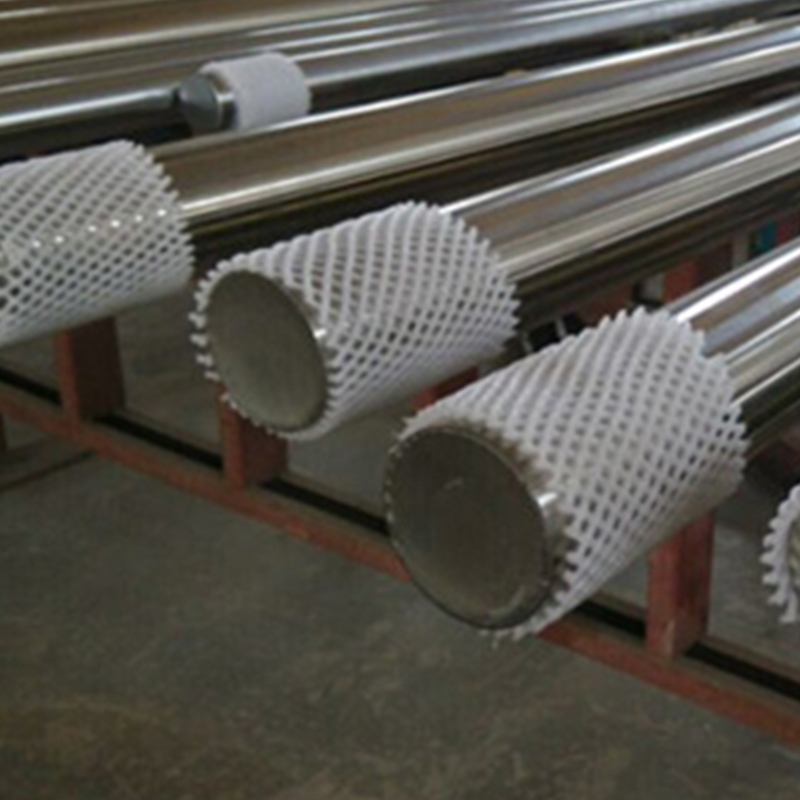

Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
