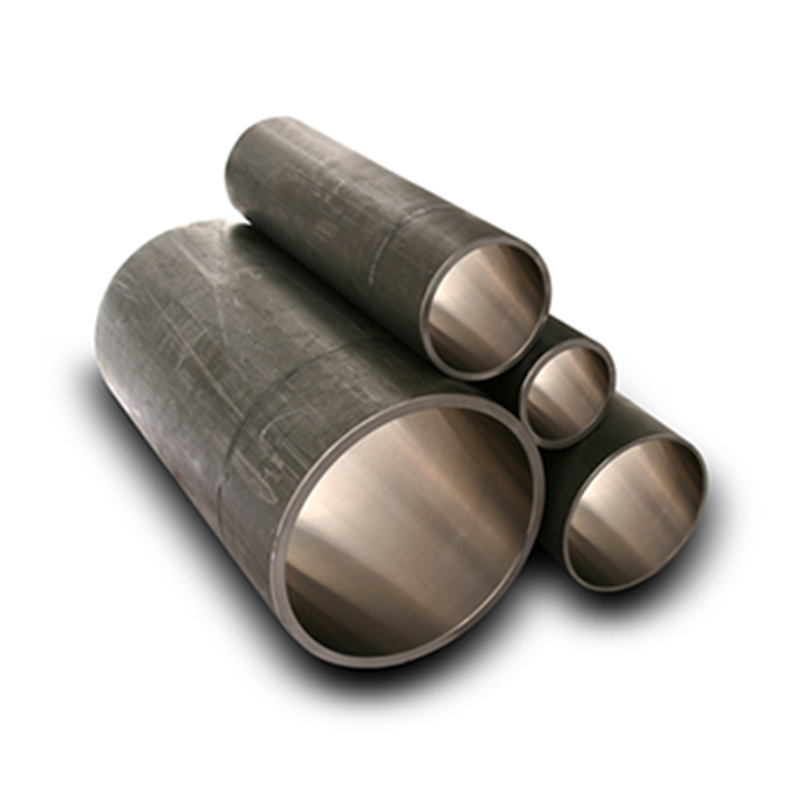

Premium 4130 Honed Tube by Leading Manufacturer - ISO H8 Precision Hydraulic Cylinder Barrel

1. Definition and process
Process: Through Honing processing, the inner wall is micro-cut with a grinding stone to remove burres and correct the geometry to form a cross-grained structure.
Features: Low inner wall roughness (usually Ra 0.1~0.4μm), high straightness, good roundness, suitable for close coordination with seals.

2. Main use
Hydraulic system: hydraulic cylinder (such as excavator, injection molding machine) to reduce friction and prevent leakage.
Pneumatic system: high precision cylinder (automation equipment, robot arm).
Industrial equipment: injection molding machine, die casting machine, machine guide rail, need to withstand high pressure, wear resistance scene.
Special fields: Precision moving parts in aerospace and military equipment.

3. Common materials
Carbon steel (e.g. ST52, SAE 1020/1045)
Features: economical and practical, moderate strength.
Uses: General hydraulic system, construction machinery.
Alloy steel (e.g. 27SiMn, 4140)
Features: tempered treatment, high strength, wear-resistant.
Uses: heavy-duty hydraulic cylinder, mining machinery.
Stainless steel (e.g. 304, 316, 17-4PH)
Features: corrosion resistance, high temperature resistance.
Uses: food machinery, ships, chemical equipment.
Other: aluminum (lightweight requirements), chrome-plated steel tube (additional wear layer).

4. Material selection and treatment
Heat treatment: tempering (improve strength), quenching (enhance surface hardness).
Surface treatment: hard chromium plating (corrosion resistance, wear resistance), phosphating (improve lubricity).
Material selection basis: load pressure, corrosion environment, cost budget.

5. Precautions
Seal matching: The sealing material (such as polyurethane, nitrile rubber) should be selected according to the inner wall roughness.
Installation cleanliness: Avoid impurities from scratching the inner wall and affecting the sealing performance.
Supplier qualification: Select manufacturers with precision honing equipment and testing capabilities (such as roundness meter, roughness meter).

Internal Diameter Accuracy:	H7, H8, H9
Internal Roughness:	Ra0.2 ~ 0.8um
Standard Length:	3 ~ 8 meters
Standard Size of External:	OD20 ~ 420mm
Standard Size of Internal:	ID18 ~ 350mm
Material:	JIS G3445 STKM 13C or Mechanical Construction Use Pipes
Availability:

Quantity:



Inquire Add to Basket

4130 alloy honed hydraulic tube precision honed cylinder barrel DIN2391 ISO H8 tolerance honed tubing hydraulic cylinder honed tube supplier Ra0.20 surface finish hydraulic tube 4m length precision honed tubing heavy duty mining machinery honed tubing automotive shock absorber honed pipes large diameter 1500mm honed cylinders ISO H8 tolerance seamless honed tubes

Product Description

Flowex was established in 2010 and make premium honed tube and chrome piston rod following international standard, with great quality and perfect service, we get wide praise and recognition from clients all over the world.

未标题-1

Our premium ST52.3 BK+S honed tubes are DIN2391 certified, offering exceptional precision with ISO H8 tolerance for hydraulic and pneumatic systems. With inner diameters ranging from 20mm to 1500mm and ultra-smooth Ra0.20-0.40μm surface finish, these 4m length tubes ensure optimal performance in demanding applications like hydraulic cylinders and cylinder barrels.",

Hard chrome plated piston rod was made by black round steel bar, through peeling, centerless grinding, polishing, chrome plate, polishing process.

Products meet international standard demands.

Ra0.20um, 0.2/1000mm, f7 tolerance.

Features:

1. High precision.

2. Made by best raw material.

3. Quality stable and uniformity.

4. Better packing protection.

5. Perfect after-sales service

Hard Chrome Plated Piston Rod

Steel Grade	CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc.
Diameter	Φ 6-500mm
Tolerance	ISO f7
Length	4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose
Roughness	max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Straightness:	<= 0.2/1000
Roundness:	Half of the tolerance ISO f7
Hardness based on Delivery condition	Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2)
Chrome Thickness	20-80µm
Chrome Hardness	min. 900 HV (0.1)
Declaration of conformity	According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H).
Packing	Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged.

Why Choice us

组 2

Rich Experience

We have 10years experience in manufacturing and export. Ensuring smooth transactions and reliable services

2.High-Quality

We provide premium products that meet international standards, each product in every process under strict quality inspection control.

3.Competitive Pricing

Bulk material sourcing and efficient management allow us to offer the best prices without compromising quality.

4.Reliable Partner

We promote wholesales channel, stand by customer and grow together with customer to Gain market share. We are your most reliable material partner.

5.Professional Team

All team members are skilled and professionally trained, most of them keep working in this team for more than 10years already.

We provide the best quality, excellent service and tailored solutions. There is no risk to choice us.

6. Efficient Logistics

We ensure fast and secure global shipping with trusted logistics partners.

Equipment

As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection.

Below manufacturing equipment for steel honed tubing and chrome plated steel bar.

组 3

"Specially designed for heavy-duty use in mining machinery and automotive shock absorbers, these honed tubes deliver unmatched durability. The oil soaked packaging provides superior corrosion protection during transit and storage. Manufacturers trust our precision tubes for power steering systems and other critical hydraulic applications requiring tight tolerances.",

Our premium 4130 honed tubes deliver exceptional performance for hydraulic and pneumatic systems. Manufactured to strict DIN2391 standards with ISO H8 tolerance, these cylinder barrels feature ultra-smooth Ra0.20-0.40μm internal finishes. The oil-soaked packaging ensures corrosion protection during transport and storage.",

"Ideal for demanding applications including mining machinery and automotive shock absorbers. Available in 20mm-1500mm diameters with consistent 4m lengths, these precision honed tubes provide perfect dimensional stability. The 4130 steel grade offers superior strength for power steering systems and hydraulic cylinders.",

"As a trusted factory supplier, we guarantee reliable performance in extreme operating conditions. Our honed tubing solutions meet the highest industry standards for surface finish and straightness. The pre-lubricated interior ensures immediate readiness for piston assembly in hydraulic cylinder applications.
