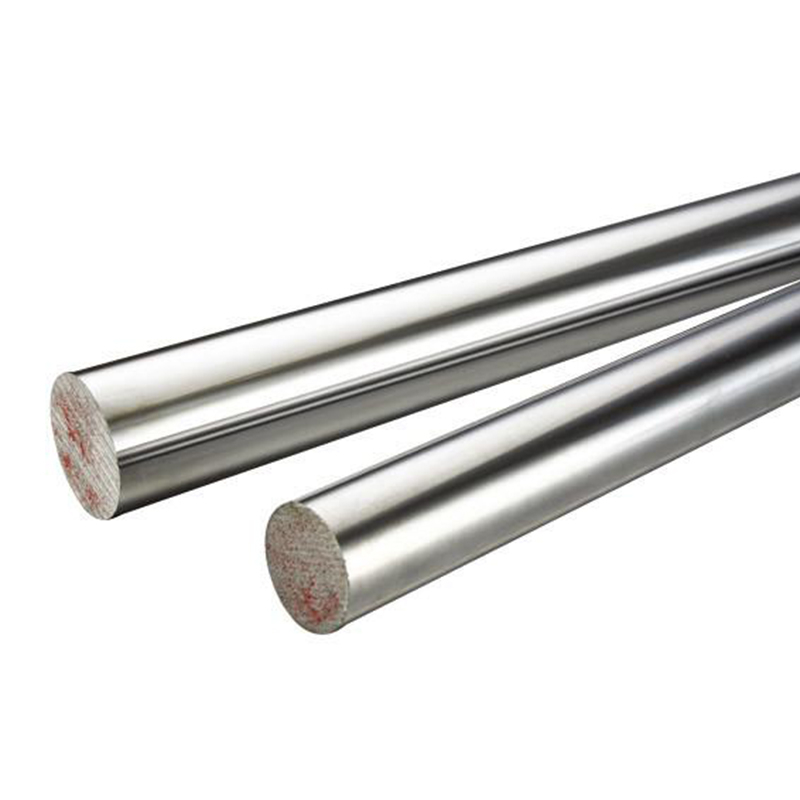

ST52 Hard Chrome Piston Rod with Surface Ra0.20μm

Hard chrome plated piston rod was made by black round steel bar, through peeling, centerless grinding, polishing, chrome plate, polishing process.
Products meet international standard demands.

Size:	Φ 6-500mm
Tolerance:	ISO f7
Length:	4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose
Roughness:	max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Straightness:	<= 0.2/1000
Roundness:	Half of the tolerance ISO f7
Chrome Thickness:	20-80µm
Availability:

Quantity:



Inquire Add to Basket

custom piston rods supplier industrial chrome piston rod hard chrome plated piston rod hydraulic piston rod manufacturer hard chrome plated shaft corrosion resistant chrome rod chrome plated cylinder shaft hard chrome plated rod for cylinders 42CrMo piston rod supplier precision chrome piston rod

Product Description

Crafted from ST52 steel, this hard chrome piston rod goes through precision grinding and polishing.

Its smooth chrome finish (Ra0.20μm) and f7 tolerance make it suitable for hydraulic equipment requiring tight dimensional control and high fatigue strength.

Features:

1. High precision.

2. Made by best raw material.

3. Quality stable and uniformity.

4. Better packing protection.

5. Perfect after-sales service

Hard Chrome Plated Piston Rod:

Steel Grade	CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc.
Diameter	Φ 6-500mm
Tolerance	ISO f7
Length	4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose
Roughness	max. Ra0.20µm (statistic average: 0.05 - 0.15µm)
Straightness	<= 0.2/1000
Roundness	Half of the tolerance ISO f7
Hardness based on Delivery condition	Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2)
Chrome Thickness	20-80µm
Chrome Hardness	min. 900 HV (0.1)
Declaration of conformity	According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H).
Packing	Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged.
