| Size: | |
|---|---|
| Tolerance: | |
| Length: | |
| Roughness: | |
| Straightness: | |
| Roundness: | |
| Chrome Thickness: | |
| Quantity: | |

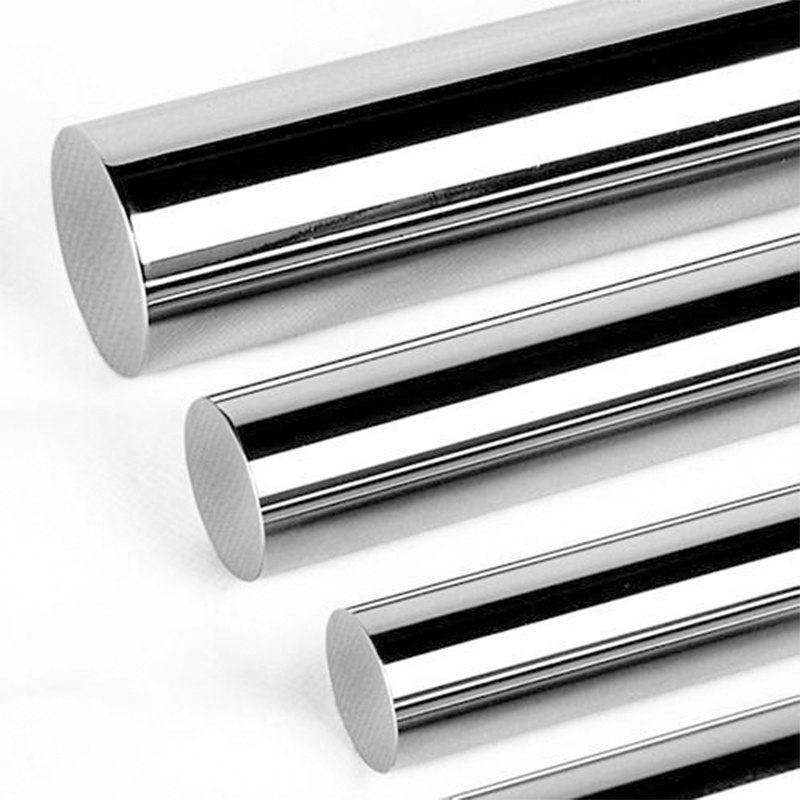

Our custom chrome rod is specifically designed for high-pressure hydraulic cylinder applications in industries such as construction, agriculture, and marine.
Produced from black round steel bars, the rods are processed through peeling, centerless grinding, chrome plating, and final mirror polishing. With Ra0.20μm surface finish and f7 tolerance, the rod ensures optimal sealing, minimal friction, and accurate linear motion.
The hard chrome coating significantly improves wear resistance, chemical corrosion resistance, and overall longevity. This product supports customized length, diameter, and packaging, providing tailored solutions for cylinder manufacturers and maintenance workshops worldwide.
Trusted for its dimensional accuracy and stable quality, our chrome rod ensures maximum system reliability in critical operations.
Features:
1. High precision.
2. Made by best raw material.
3. Quality stable and uniformity.
4. Better packing protection.
5. Perfect after-sales service
Hard Chrome Plated Piston Rod:
Steel Grade | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo4, SUS304/316 Duplex 2205, etc. |
Diameter | Φ 6-500mm |
Tolerance | ISO f7 |
Length | 4m, 5.8m, 6m, 7.5m, 12m, 14m can be choose |
Roughness | max. Ra0.20µm (statistic average: 0.05 - 0.15µm) |
Straightness | <= 0.2/1000 |
Roundness | Half of the tolerance ISO f7 |
Hardness based on Delivery condition | Normal chrome rod (HRC 15-22) Q+T chrome rod (HRC 28-35) Induction Hardened chrome rod (HRC 55+/-2) Q+T and Induction hardened chrome rod (HRC 55+/-2) |
Chrome Thickness | 20-80µm |
Chrome Hardness | min. 900 HV (0.1) |
Declaration of conformity | According to EN 10083-2 Test in natural salt spray according to ASTM B 17 (96/120/150/200H). |
Packing | Oil soaked, carton pipe sheathed, cotton rope twined, bubble film packaged. |
